Product references
| PRODUCT | |
| DCL20 | Induction loop amplifier for counters and small room |
| COMPLETE KIT | |
| DCL20-K | DCL20 + Microphone (OP-M) + Loop (OP-iL) + Power supply + Stickers |
| DCL20-K1 | DCL20 + Microphone (OP-M81) + Loop (OP-iL) + Power supply + Stickers |

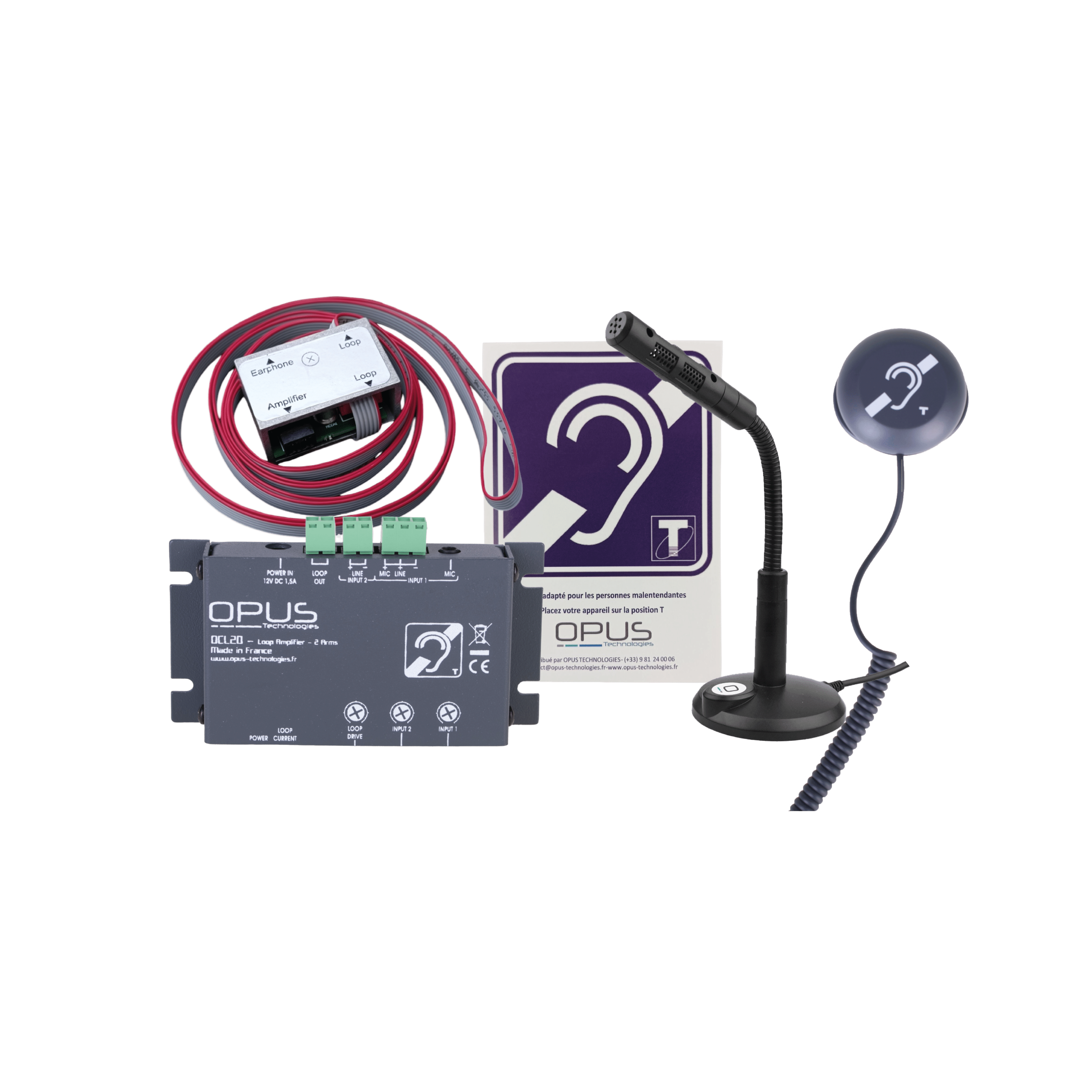

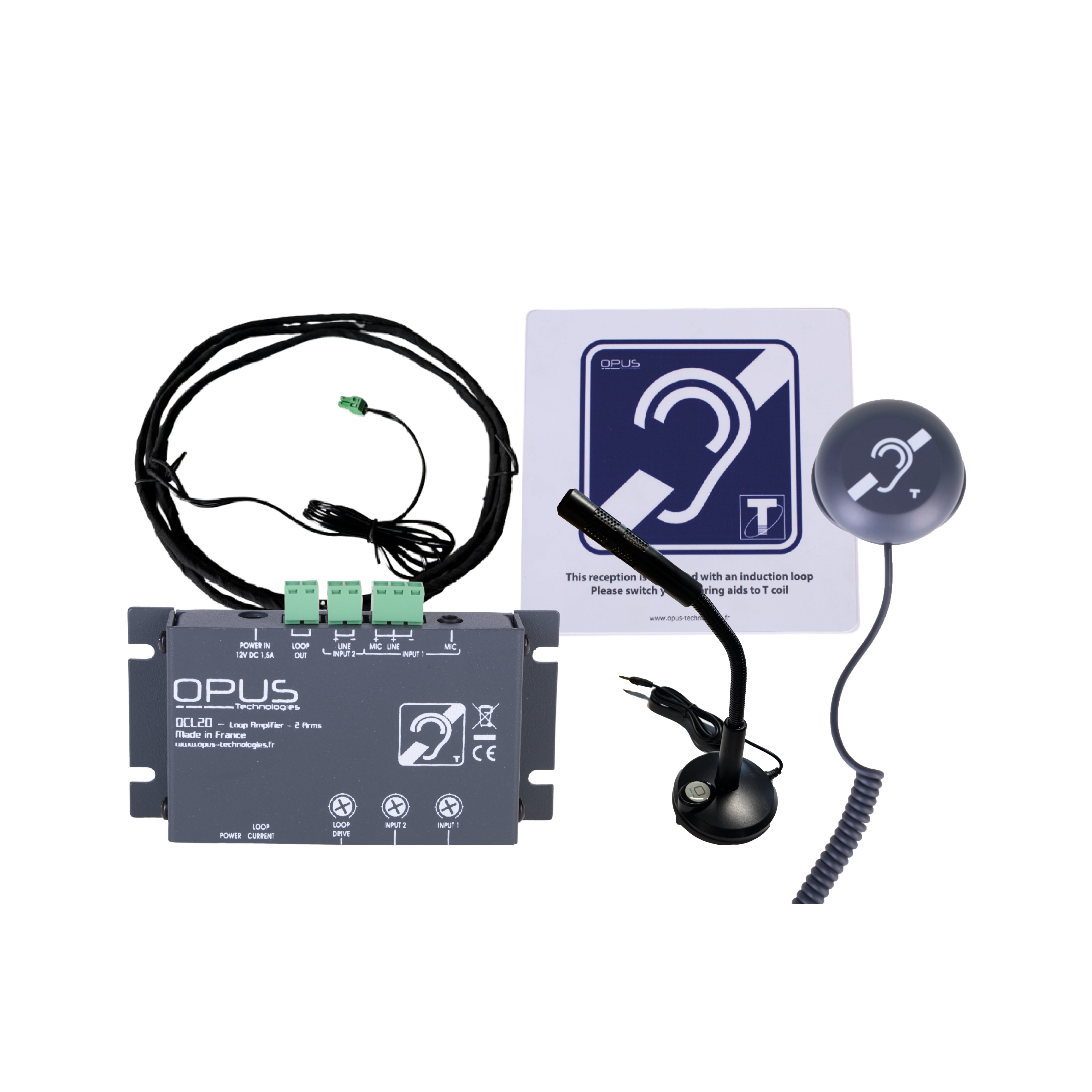

| DCL20-K2 | DCL20 + Microphone (OP-M81) + Earphone (OP-E3) + Loop (OP-iL) + Power supply + Stickers |
| DCL20-E3 | DCL20 + Microphone (OP-M) + Earphone (OP-E3) + Loop (OP-iL) + Power supply + Stickers |
| DCL20-TV | DCL20 + Microphone (OP-M) + Adapter (OP-ToSLink) + 30 m of copper coil (LC-ROOM) + Power supply + Stickers |
| DCL20-SA | DCL20 + Microphone (OP-M) + 30 m of copper coil (LC-ROOM) + Power supply + Stickers |
| DCL20-WALL | DCL20 + Microphone (OP-M) + Pictogram (OP-WALL2) + Power supply + Stickers |
| DCL20-PLUG | DCL20 + Microphone (OP-M) + Pictogram (OP-WALL2) + Stand (OP-PLUG) + Power supply + Stickers |
| ACCESSORIES | |
| OP-M | Miniature surface-mount microphone |

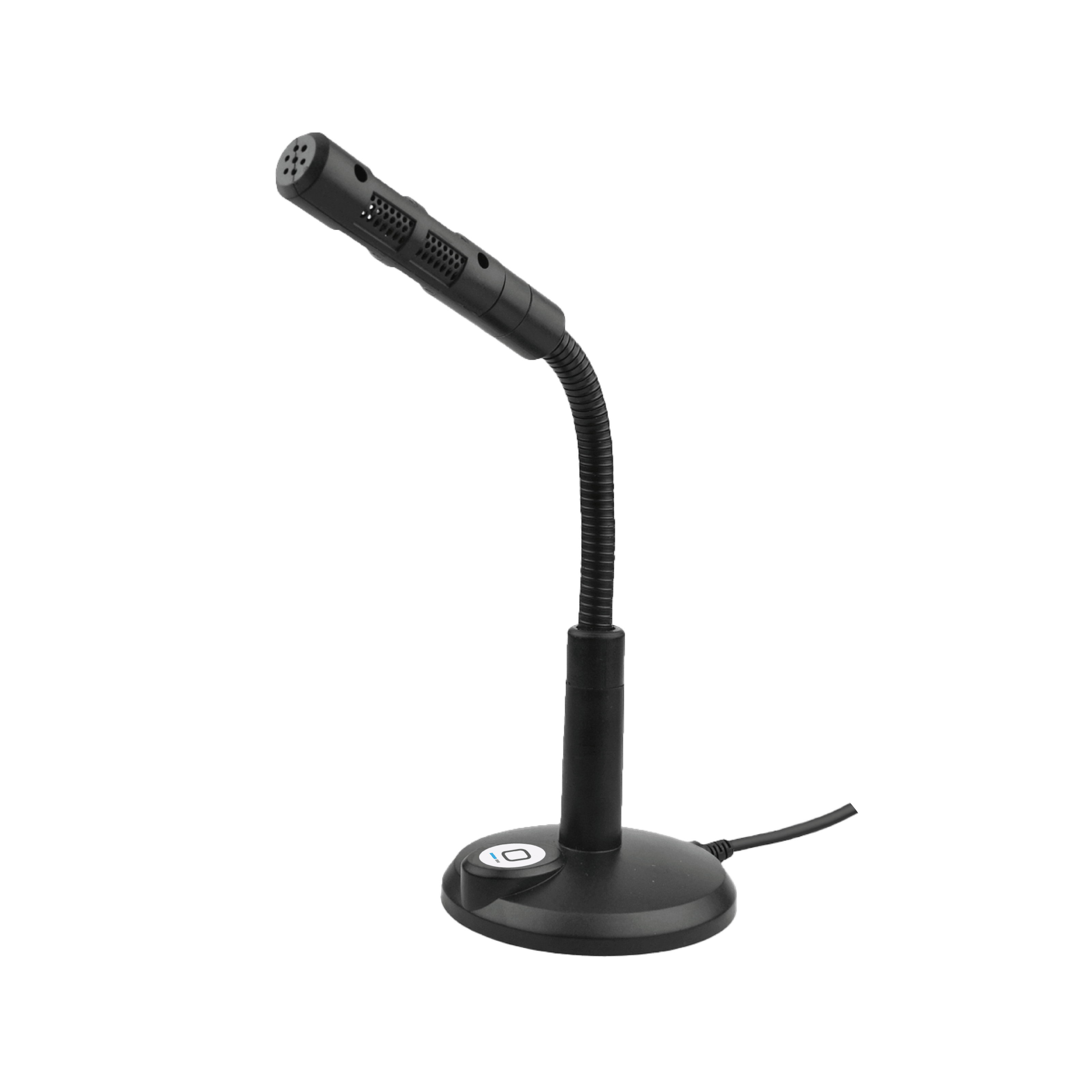

| OP-M81 | Gooseneck microphone |
| OP-E3 | Earpiece, handset shape, for people without hearing aid |
| OP-iL | Replacement standard magnetic loop for DCL20 supplied with connectors |
| OP-TosLink | Adapter to convert digital TV audio signal to analog signal for BIM |
| OP-WALL2 | Induction loop integrated into an "Area adapted for hearing-impaired " pictogram, to fix on a wall or on its OP-CW2 easel |
| OP-PLUG | Easel for OP-WALL2 and DCL20 |
| LC-ROOM | 30 meters cable spool, section : 1 x 0,5mm² to equipp a small room |
Technical specifications
| INPUT | |
| Audio input | 1x microphone + 1x LINE input |
| Connector type | 1x Micro Jack 3,5 mm + Pheonix |
| Phantom supply | 4,5 V, 1 mA |
| POWER SUPPLY | |
| Characteristics | 12 V DC / 1,5 A |
| Type | Separated power block |
| Voltage | 230 V, 50-60 Hz |
| Power | < 20 W |
| Fuse | Thermal |
| AUDIO PROCESSOR | |
| Compression | From 1:1 to 20:1 |
| Etching | 10 mS |
| Lowering | Auto 500 mS or 1 500 mS |
| Brandwidth | 80 Hz to 8 kHz at -3 dB |
| Dynamic | > 0 dB |
| THD | THD+N < 0,5 % at 1 kHz |
| OUTPUT | |
| Type | Current |
| Loop impedance | From 0,5 to 3,0 Ω |
| Peak current | 4 A |
| RMS current | 2 A at 1 kHz |
| Protection | Thermal, sort circuit and start |
| PRODUCT SPECIFICATIONS | |
| Dimensions | 100 x 50 x 20 mm |
| Net weight | 83 g |
| Packaging | Cardboard |
