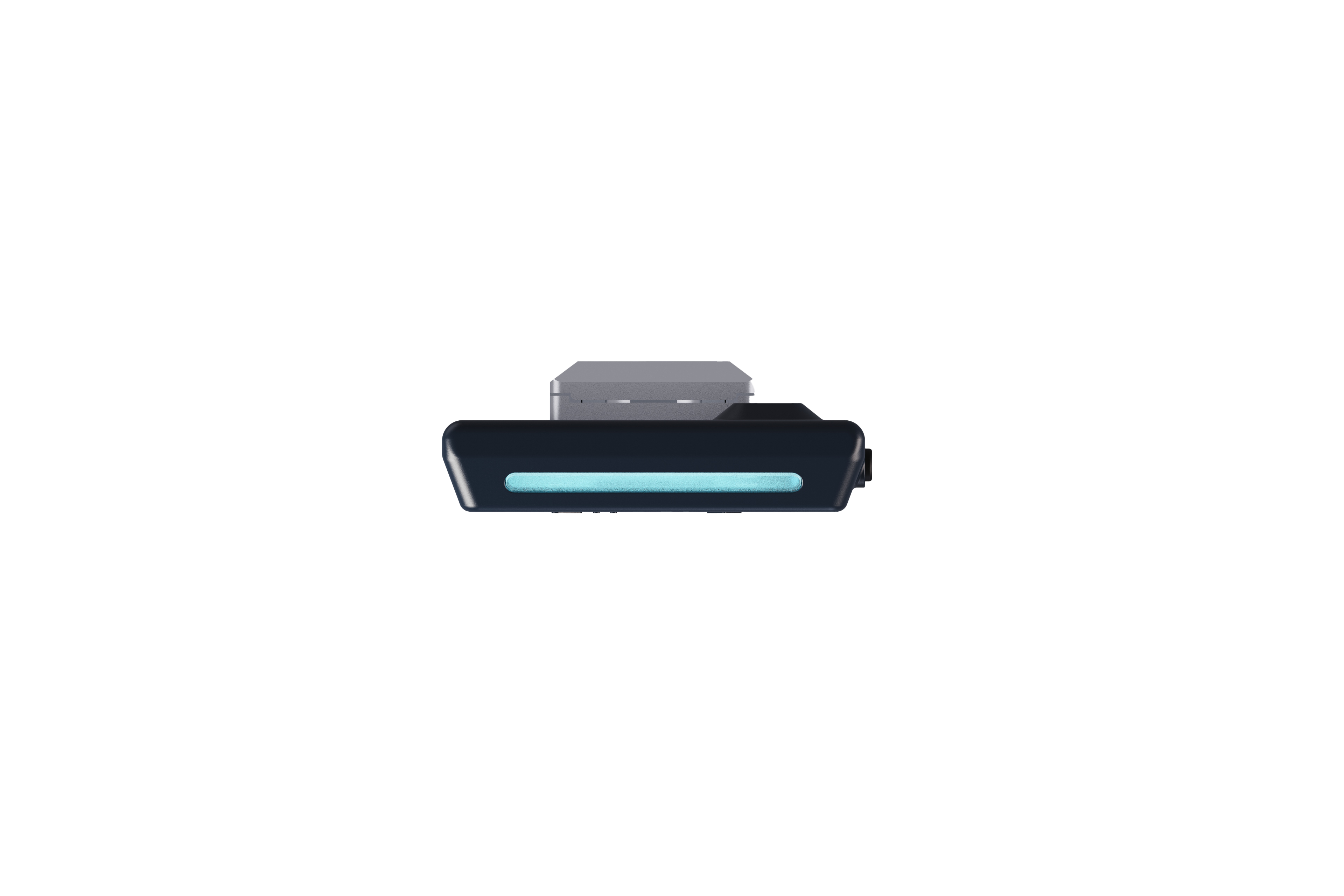

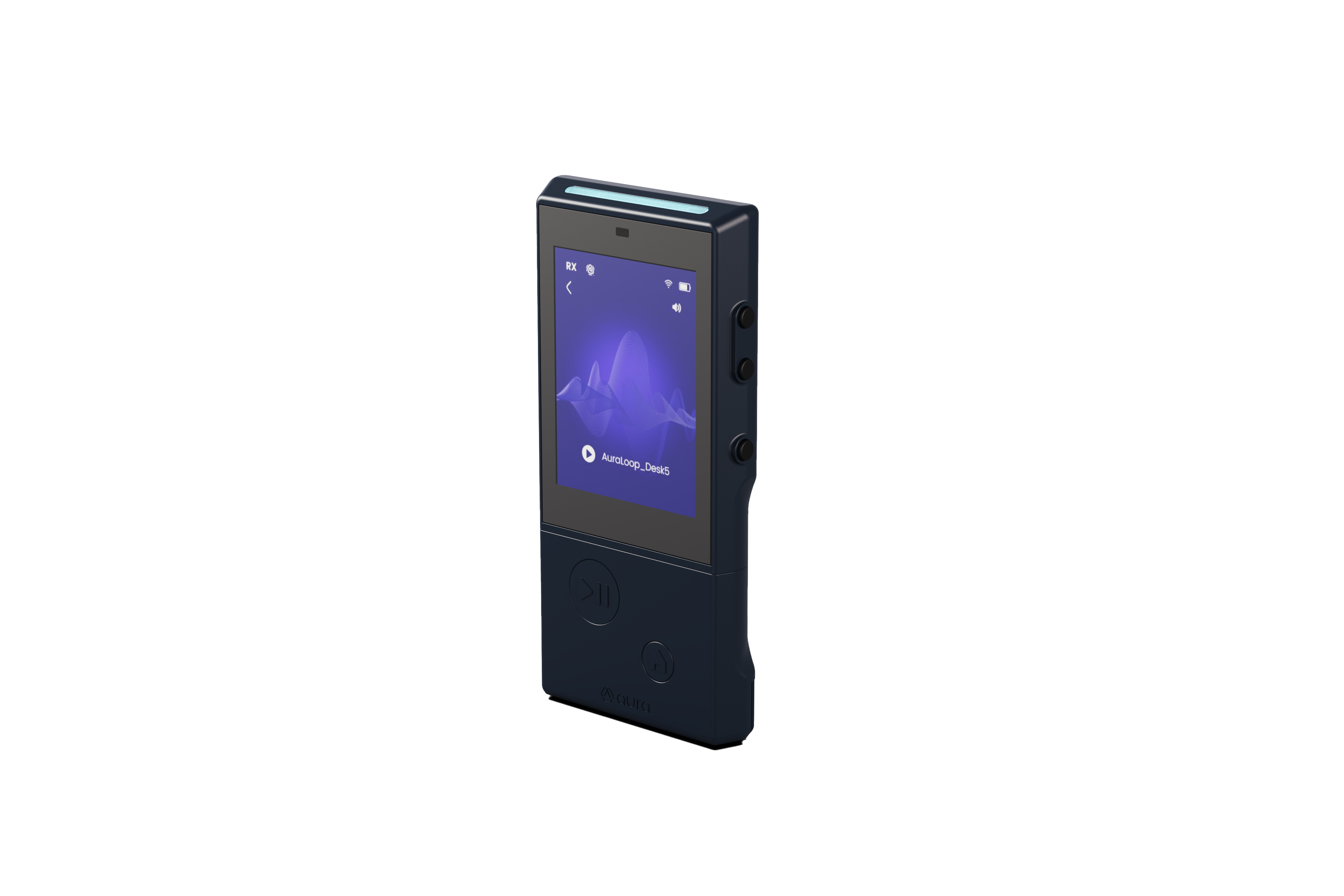

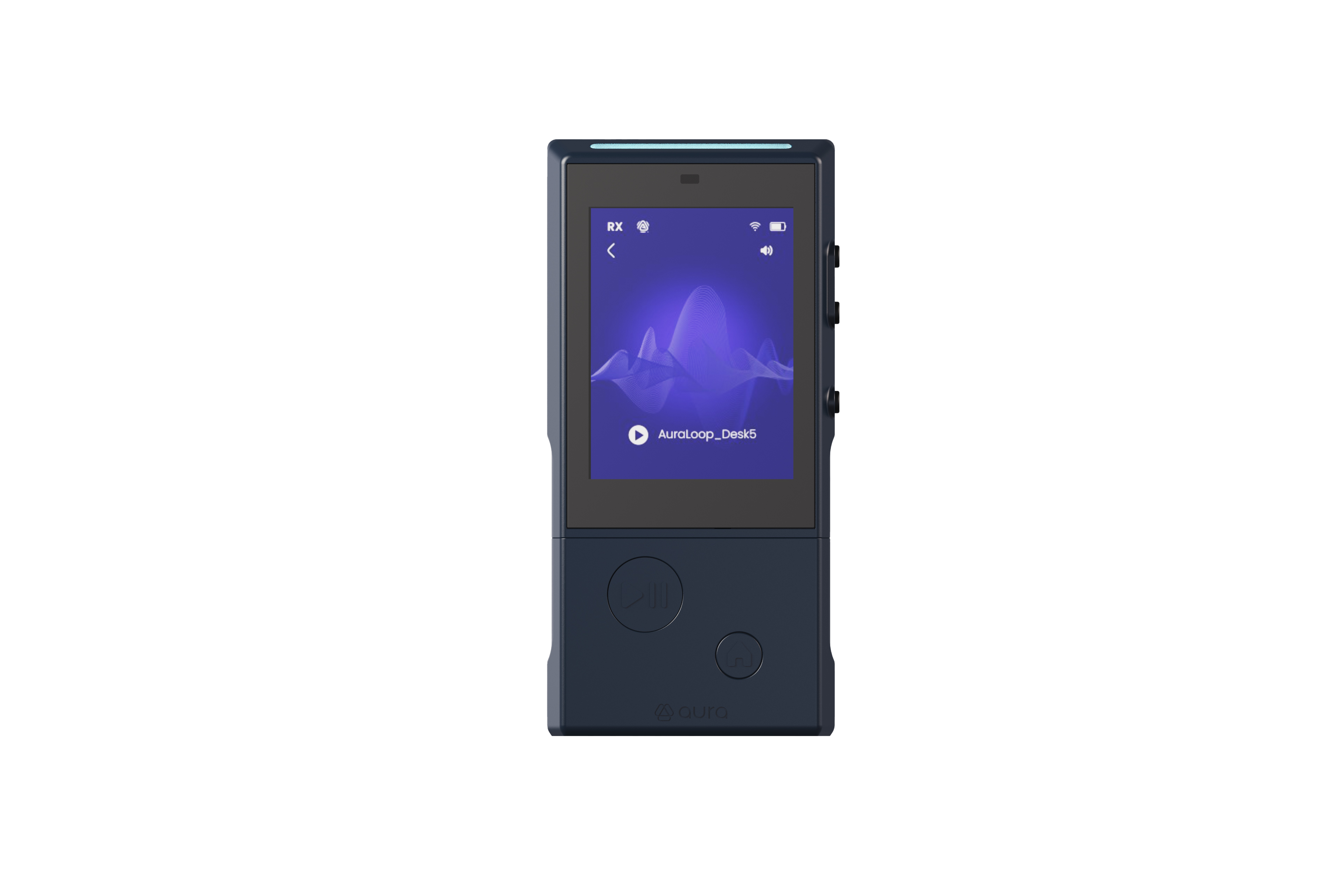

AuraSTRX-B

SKU: aurastrx-b Categories: Auracast™ Systems, Receivers, Transmitters

Description :

The AuraSTRX-B from Opus is a versatile, compact device designed for seamless wireless audio streaming. It can receive Auracast audio directly to wired headphones or neckloop, and broadcast live audio streams to multiple devices simultaneously. Ideal for museums, conferences, guided tours, or public spaces, it ensures clear, reliable aduio while supporting accessibility for all listeners.

Accessories or products linked to this reference :

Technical specifications

RF
Connectivity	Auracast™ (Bluetooth 5.2 and up)
Operation freqeuncy	2 402 to 2 480 MHz
Auracast™ mode	Transmitter or receiver
Encryption	AES-CCM
Transmitter power	10 dBm (EU)
Reception sensivity	-95 dBm
CONTROLS
Touch screen	2,8-inch touch LCD
Mechanical button	5 buttons
Configuration	AuraConnect Desktop
Update	AuraConnect Desktop
PERIPHERALS
QR code reader	Connect to broadcast
Light sensor	Adjust the screen brightness
Proximity sensor	Detects user
Accelerometer	Detects position of AuraSTRX
Status LED	RGB multifunction
AUDIO OUTPUT
Mode	Stereo or Mono
Connection	3,5 mm, 3 or 4 pins
Impedance	16 or 32 Ohm
Nominal output	57 mW RMS per channel
AUDIO INPUT
Connection	3,5 mm, 4 pins
Input	Micro via Jack 3,5 mm
AUDIO PROCESSING
Sample rate	16 kHz
	24 kHz
	48 kHz
Codec	LC3
Frequency responses	16 kHz : 50 Hz to 7,5 kHz
	24 kHz : 50 Hz to 11 kHz
	48 kHz : 50 Hz to 19,5 kHz
Latency	30 ms with an AuraGate
POWER AND CHARGING
Power supply	USB-C or charging station
Power	5 V, 500 mA
Dock connection	USB-C
Battery	3,7 V / 1700 mAh
AUTONOMY
Screen always ON, TX, 10 dBm	> 8 hours
Screen OFF, TX, 10 dBm	> 20 hours
Screen always ON, RX	> 10 hours
Screen OFF, RX	> 50 hours
PRODUCT SPECIFICATIONS
Dimensions	130 x 60 x 14 mm
Weight	85 g
Storage temperature	-15 to 60 °C
Protection rating	IP64
