AuraSTRX

SKU: aurastrx Categories: Auracast™ Systems, Receivers, Transmitters

Description :

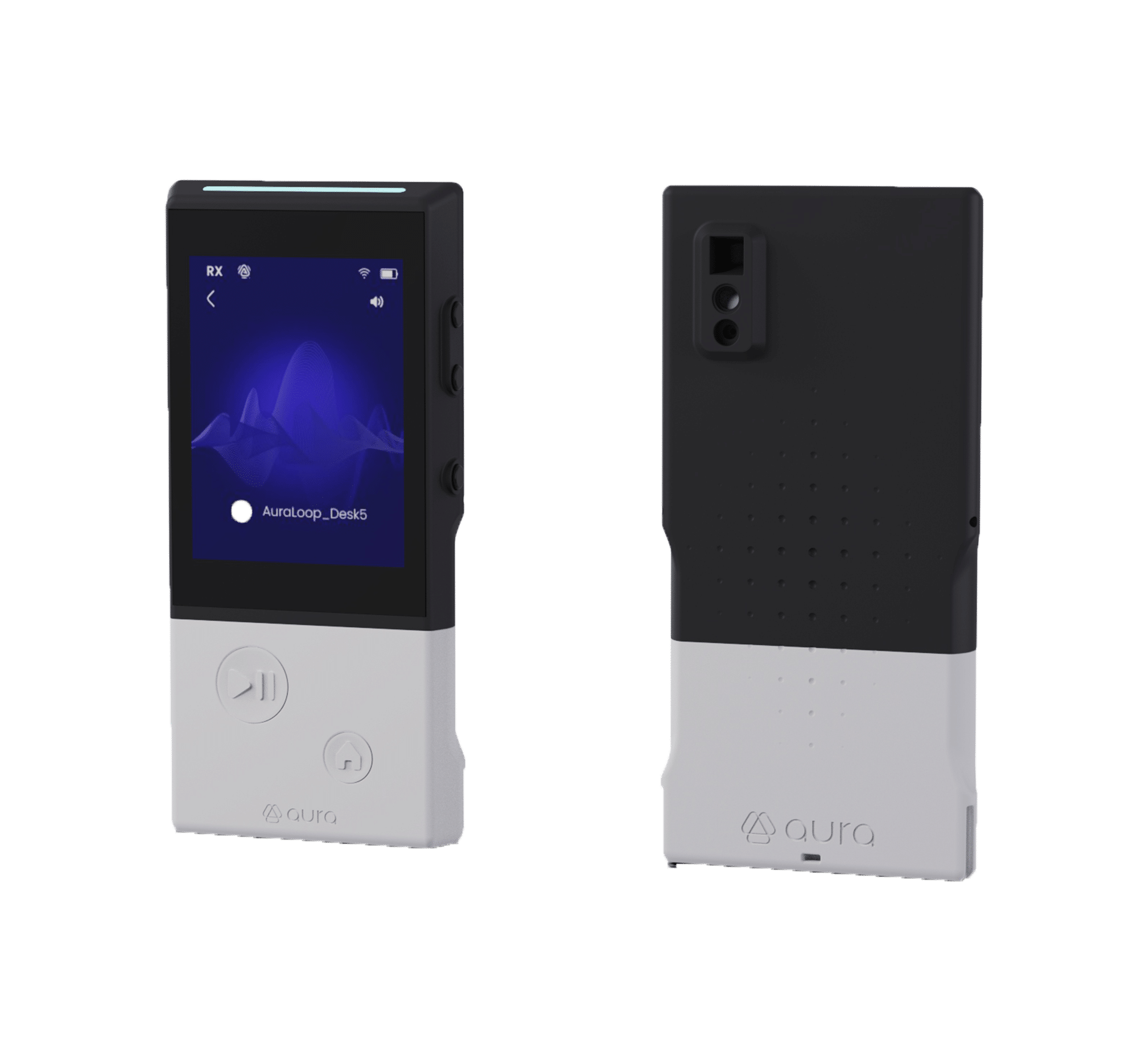

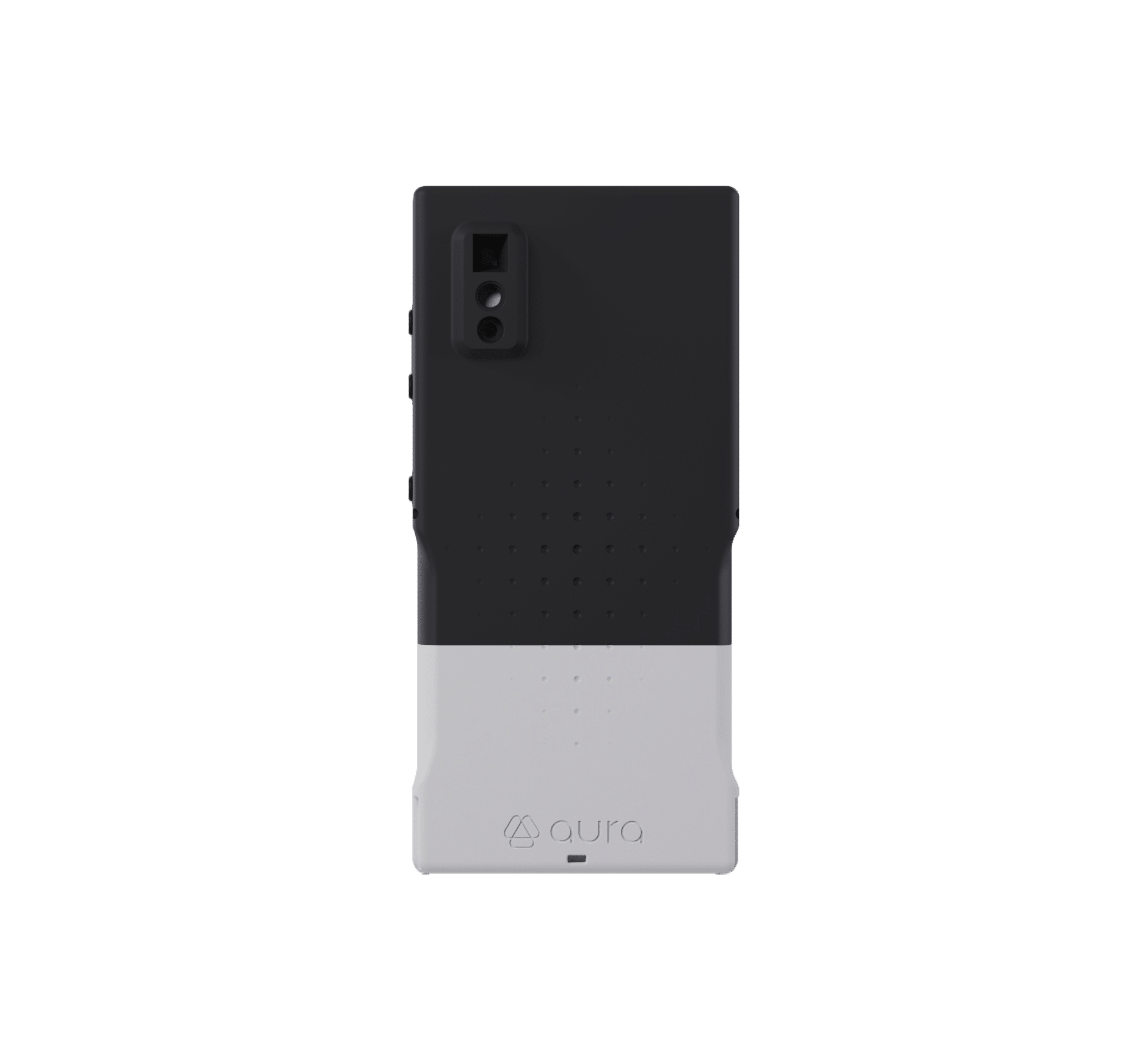

A compact and intuitive Auracast™ receiver/transmitter, the AuraSTRX is designed to meet the needs of modern users. Compatible with our Aura by Opus range and any other Auracast™ systems, it redefines the user experience

Accessories or products linked to this reference :

Technical specifications

RF
Connectivity	Auracast™ (Bluetooth 5.2 and up)
Operation freqeuncy	2 402 to 2 480 MHz
Auracast™ mode	Transmitter
Encryption	EAS-CCM
Transmitter power	10 dBm (EU) and 20 dBm (USA)
Reception sensivity	-95 dBm
CONTROL
Touch screen	2,8-inch touch LCD
Mechanical button	5 buttons
Configuration	Screen or AuraConnect application
Update	AuraConnect application
PERIPHERALS
QR code reader	Connect to bradcast
Light sensor	Adjust screen brightness
Proximity sensor	Detect user
Accelerometer	Detect position of AuraSTRX
Stauts LED	RGB multifunction
AUDIO OUTPUT
Mode	Stereo or Mono
Connexion	3,5 mm, 3 or 4 pins
Impedance	16 or32 Ohm
Nominal output	57 mW RMS per channel
AUDIO INPUT
Connexion	3,5 mm, 4 pins
Input	Micro via Jack 3,5 mm
AUDIO PROCESSING
Sample rate	16 kHz
	24 kHz
	48 kHz
Codec	LC3
Frequency responses	16 kHz : 50 Hz to 7,5 kHz
	24 kHz : 50 Hz to 11 kHz
	48 kHz : 50 Hz to 19,5 kHz
Latency	30 ms with AuraGate
POWER AND CHARGING
Power supply	USB-C or docking station
Power	5 V, 300 mA
Dock connection	USB-C
Battery	3,7 V, 1 700 mAh
AUTONOMY
Screen always ON, TX, @10 dBm	> 8 hours
Screen OFF, TX, @10 dBm	> 20 hours
Screen always ON, RX	> 10 hours
Screen OFF, RX	> 50 hours
PRODUCT SPECIFICATIONS
Dimensions	190 x 190 x 50 mm
Weight	250 g
Temperature storage	-15 to 60 °C
Protection rating	IP64
