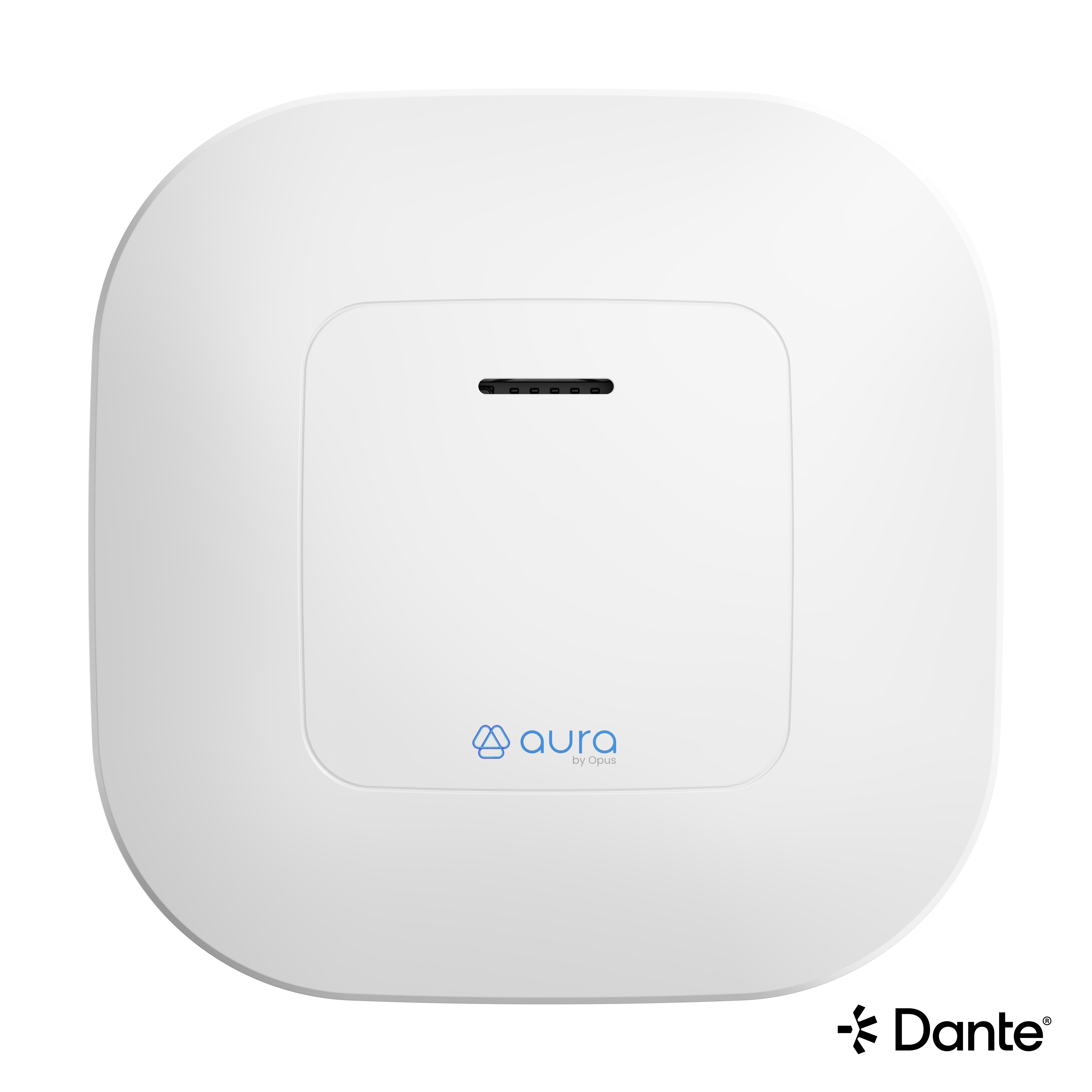

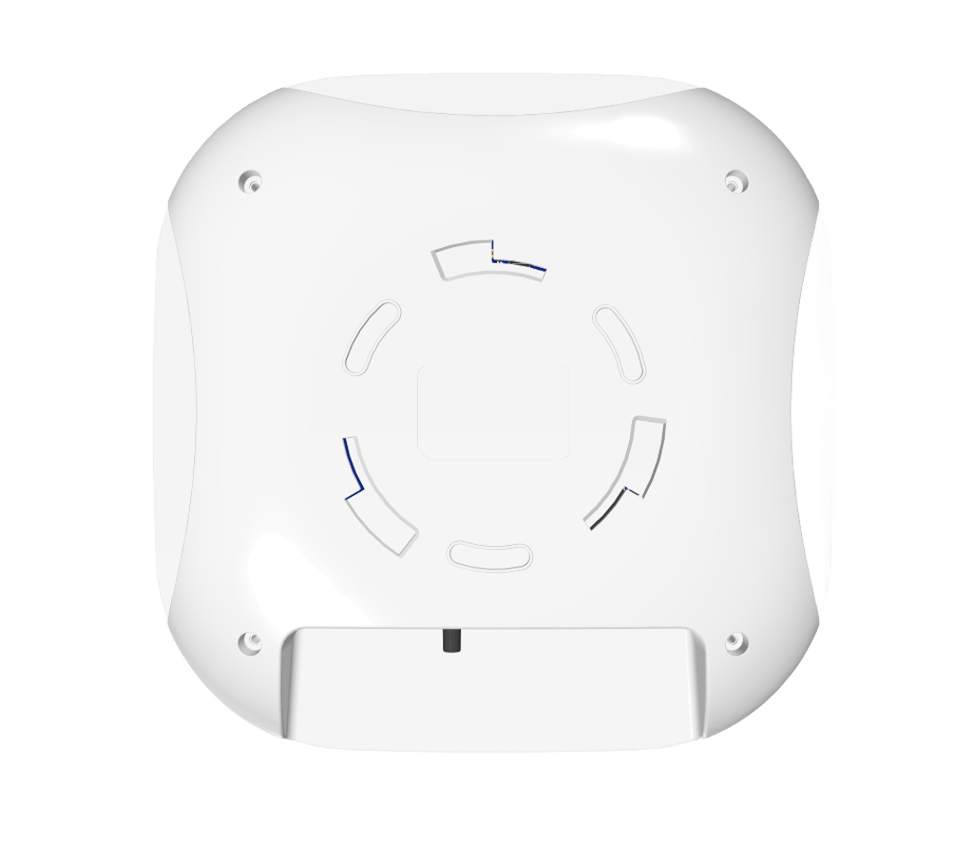

AuraGateNET-WH
Description :
Available in Q4
AuraGateNET-WH by Opus is an innovative broadcasting terminal designed to deliver a premium audio experience. By integrating Auracast™ broadcasting with advanced technologies, we provide smooth, stable audio transmission that faithfully reproduces the original source, regardless of the listening environment (auditorium, cinema, airport, outdoor concert, etc…).
AuraConnect: your Aura by Opus installation, from unboxing to go-live, in just a few taps.
You arrive on site with a new Aura by Opus device to install. Instead of digging through a manual, you open AuraConnect, scan the product’s QR code, and the device is instantly recognized, ready to configure. That’s the essential mobile app to configure and manage your Aura by Opus installations, and with it, the entire Aura by Opus range can be set up and controlled in just a few taps, whether you’re an installer or a venue owner.
- Quick device onboarding: scan a QR code or enter the serial number to register a product.
- Full and customizable configuration: broadcast name, transmission power, audio input selection, mono/stereo modes, and more.
- Two user profiles adapted to your needs:
- Owner: view and control all installations, and invite an installer if required.
- Installer: create projects, manage customers and devices from a unified dashboard.
- Centralized management of multiple venues and rooms: create zones, assign devices, and track interventions.
- Real-time updates and status monitoring: stay informed and keep your devices up to date.
AuraConnect makes deploying Aura by Opus solutions smooth, fast, and professional, ideal for public venues, education facilities, reception areas, and multi-site environments.
Don’t wait any longer, download it now!
Accessories or products linked to this reference :
Technical specifications
| RF | |
| Connectivity | Auracast™ (Bluetooth 5.2 and up) |
| Operation frequency | 2 402 to 2 480 MHz |
| Auracast™ mode | Transmitter |
| Encryption | AES-CCM |
| Transmission power | 10 dBm (EU) and 20 dBm (USA) |
| CONTROLS | |
| Mechanical buttons | 4 switchs : First function : Micro/LINE/Phantom Second function : set to BLE COFIG/UPDATE or Auracast mode |
| Configuration | AuraConnect application / AuraConnect Desktop |
| Update | AuraConnect application / AuraConnect Desktop |
| PERIPHERALS | |
| Statuts LED | RGB multifunction |
| AUDIO INPUT (AURACAST™) | |
| Auracast™ stereo | Quality : 16, 24 or 48 kHz |
| Mesured range | Up to 150 m (open field) |
| AUDIO OUTPUT (PHYSICAL) | |
| Mode | Mono/Stereo via PoE+ |
| Connection | 3 pins (differential) |
| Impedance | 4 or 8 Ohm |
| Nominal output | 400 mW |
| AUDIO INPUT | |
| LINE or MICRO input | 2x Analog LINE/MICRO inputs + Dante, PoE+ |
| Dante | Yes (2RX 2TX) |
| AUDIO PROCESSING | |
| Sample rate | 16 kHz |
| 24 kHz | |
| 48 kHz | |
| Codec | LC3 |
| Frequency responses | 16 kHz : 50 Hz to 7,5 kHz |
| 24 kHz : 50 Hz to 11 kHz | |
| 48 kHz : 50 Hz to 19,5 kHz | |
| Latency | 30 ms |
| Automatic Gain Control (AGC) | Yes |
| POWER SUPPLY AND CHARGING | |
| Power supply | PoE |
| Secondary power supply | DC 33 at 57 V 2A |
| Connection to the station | PoE |
| Daisy chaning connection | Up to 3 additional devices |
| PRODUCT SPECIFICATIONS | |
| Dimensions | 190 x 190 x 50 mm |
| Net Weight | 250 g |
| Temperature storage | -15 to 60 °C |
